CHB100W

66-100Watts 4:1 Input Range Half Brick DC-DC Converter

CHB100W 66-100Watts 4:1 Input Range Half Brick DC-DC Converter

66-100W Isolated Output

Half Brick Size

Five Sided Shield Metal Case

Regulated Outputs

Efficiency to 89%

Continuous Short Circuit Protection

UL60950-1 Approval (Except 28 Vout)

Download File
Part Number Input Voltage Output Voltage Output Current No load Input Current Efficiency (%) I/O Isolation Voltage Package Datasheet Find stock RFQ
　 CHB100W-48S3V3 18~75V 3.3V 20A 30mA 82.5 1500VDC Half Brick Stock RFQ
　 CHB100W-48S48N 18~75V 48V 2.08A 30mA 84.5 1500VDC Half Brick Stock RFQ
　 CHB100W-48S12N 18~75V 12V 8.3A 30mA 87.5 1500VDC Half Brick Stock RFQ
　 CHB100W-48S28N 18~75V 28V 3.57A 50mA 86 1500VDC Half Brick Stock RFQ
　 CHB100W-48S24N 18~75V 24V 4.17A 30mA 89 1500VDC Half Brick Stock RFQ
　 CHB100W-48S15N 18~75V 15V 6.7A 30mA 88 1500VDC Half Brick Stock RFQ
　 CHB100W-48S05N 18~75V 5V 20A 30mA 86 1500VDC Half Brick Stock RFQ
　 CHB100W-48S3V3N 18~75V 3.3V 20A 30mA 82.5 1500VDC Half Brick Stock RFQ
　 CHB100W-48S05 18~75V 5V 20A 30mA 86 1500VDC Half Brick Stock RFQ
　 CHB100W-48S12 18~75V 12V 8.3A 30mA 87.5 1500VDC Half Brick Stock RFQ
　 CHB100W-48S28 18~75V 28V 3.57A 50mA 86 1500VDC Half Brick Stock RFQ
　 CHB100W-48S24 18~75V 24V 4.17A 30mA 89 1500VDC Half Brick Stock RFQ
　 CHB100W-48S15 18~75V 15V 6.7A 30mA 88 1500VDC Half Brick Stock RFQ
　 CHB100W-48S48 18~75V 48V 2.08A 30mA 84.5 1500VDC Half Brick Stock RFQ
　 CHB100W-24S12 9~36V 12V 8.3A 35mA 85.5 1500VDC Half Brick Stock RFQ
　 CHB100W-24S28 9~36V 28V 3.57A 50mA 86 1500VDC Half Brick Stock RFQ
　 CHB100W-24S15 9~36V 15V 6.7A 35mA 87 1500VDC Half Brick Stock RFQ
　 CHB100W-24S24 9~36V 24V 4.17A 35mA 87.5 1500VDC Half Brick Stock RFQ
　 CHB100W-24S3V3 9~36V 3.3V 20A 35mA 82.5 1500VDC Half Brick Stock RFQ
　 CHB100W-24S05 9~36V 5V 20A 35mA 84.5 1500VDC Half Brick Stock RFQ
　 CHB100W-24S24N 9~36V 24V 4.17A 35mA 87.5 1500VDC Half Brick Stock RFQ
　 CHB100W-24S48 9~36V 48V 2.08A 35mA 82.5 1500VDC Half Brick Stock RFQ
　 CHB100W-24S3V3N 9~36V 3.3V 20A 35mA 82.5 1500VDC Half Brick Stock RFQ
　 CHB100W-24S05N 9~36V 5V 20A 35mA 84.5 1500VDC Half Brick Stock RFQ
　 CHB100W-24S12N 9~36V 12V 8.3A 35mA 85.5 1500VDC Half Brick Stock RFQ
　 CHB100W-24S15N 9~36V 15V 6.7A 35mA 87 1500VDC Half Brick Stock RFQ
　 CHB100W-24S48N 9~36V 48V 2.08A 35mA 82.5 1500VDC Half Brick Stock RFQ
　 CHB100W-24S28N 9~36V 28V 3.57A 50mA 86 1500VDC Half Brick Stock RFQ
Related Products

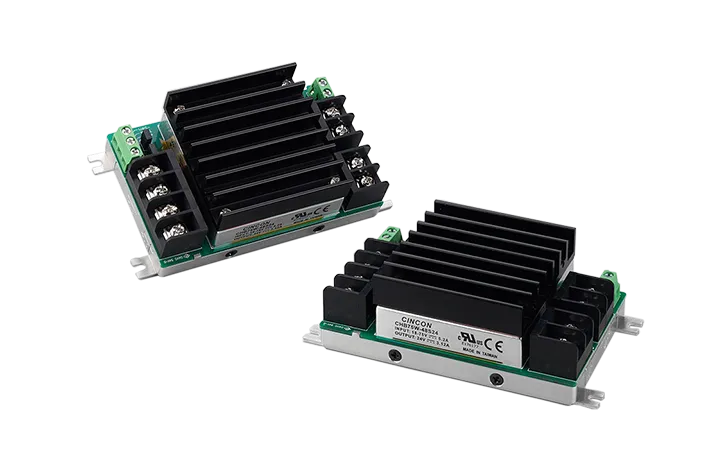

CHB/CHE50-100W-CM/DIN
