EC3B

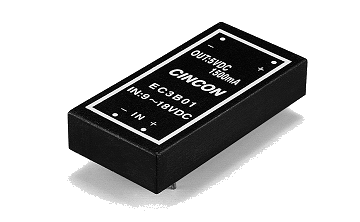

7.5Watts 2"x1" Isolated DC-DC Converter

*EOL Effective Date: Aug/31/2022*

7.5W Isolated Output

Efficiency to 82%

2” x 1” Case

Regulated Outputs

Pi Input Filter

Continuous Short Circuit Protection

Download File

Part Number	Input Voltage	Output Voltage	Output Current	No load Input Current	Efficiency (%)	I/O Isolation Voltage	Package	Find stock	RFQ
EC3B01	9~18V	5V	1.5A	7.5mA	76	1500VDC	2”x1” (B)	Stock	RFQ
EC3B02	9~18V	12V	0.625A	7.5mA	80	1500VDC	2”x1” (B)	Stock	RFQ
EC3B03	9~18V	15V	0.5A	7.5mA	80	1500VDC	2”x1” (B)	Stock	RFQ
EC3B04	9~18V	±12V	±0.31A	12mA	80	1500VDC	2”x1” (B)	Stock	RFQ
EC3B05	9~18V	±15V	±0.25A	12mA	80	1500VDC	2”x1” (B)	Stock	RFQ
EC3B06	9~18V	±5V	±0.75A	7.5mA	76	1500VDC	2”x1” (B)	Stock	RFQ
EC3B07	9~18V	3.3V	1.5A	7.5mA	74	1500VDC	2”x1” (B)	Stock	RFQ
EC3B11	18~36V	5V	1.5A	5mA	78	1500VDC	2”x1” (B)	Stock	RFQ
EC3B12	18~36V	12V	0.625A	5mA	82	1500VDC	2”x1” (B)	Stock	RFQ
EC3B13	18~36V	15V	0.5A	5mA	82	1500VDC	2”x1” (B)	Stock	RFQ
EC3B14	18~36V	±12V	±0.31A	7.5mA	81	1500VDC	2”x1” (B)	Stock	RFQ
EC3B15	18~36V	±15V	±0.25A	7.5mA	81	1500VDC	2”x1” (B)	Stock	RFQ
EC3B16	18~36V	±5V	±0.75A	7.5mA	78	1500VDC	2”x1” (B)	Stock	RFQ
EC3B17	18~36V	3.3V	1.5A	5mA	76	1500VDC	2”x1” (B)	Stock	RFQ
EC3B21	36~72V	5V	1.5A	2mA	78	1500VDC	2”x1” (B)	Stock	RFQ
EC3B22	36~72V	12V	0.625A	2mA	81	1500VDC	2”x1” (B)	Stock	RFQ
EC3B23	36~72V	15V	0.5A	2mA	81	1500VDC	2”x1” (B)	Stock	RFQ
EC3B24	36~72V	±12V	±0.31A	3mA	81	1500VDC	2”x1” (B)	Stock	RFQ
EC3B25	36~72V	±15V	±0.25A	3mA	81	1500VDC	2”x1” (B)	Stock	RFQ
EC3B26	36~72V	±5V	±0.75A	3mA	78	1500VDC	2”x1” (B)	Stock	RFQ
EC3B27	36~72V	3.3V	1.5A	3mA	76	1500VDC	2”x1” (B)	Stock	RFQ
