オープンフレーム

CINCONのオープンフレームAC-DCスイッチング電源モジュールは、コネクタタイプ、ベースプレート冷却タイプ、PCBマウントタイプを提供しており、出力レンジは6Wから600Wです。これらの製品は、現在の市場で最も高い電力密度の製品の一つで、すべての製品は、最新のITE安全規格または医療安全規格に適合しています。

当社の最新機種の一部はEN/IEC 60335-1にも適合しており、200%ピーク負荷機能という独自の機能を備えています。これにより、お客様が短期間で瞬時に高い電力を必要とする場合にも対応できます。また、過剰スペックの他製品を選ぶ必要がなくなり、コストとレイアウトスペースの消費を節約できます。

CINCONのAC-DCスイッチング電源モジュールの紹介です:

産業用、ITE（情報技術機器）、および5G通信用途向けには、クラスI、クラスII、ならびにクラスIとクラスII両方に対応するカテゴリからお選びいただけます。クラスI電源の出力範囲は20Wから550Wです。クラスII電源の出力範囲は6Wから60Wです。両方のオプションに対応するカテゴリの出力範囲は36Wから600Wとなります。

医療用途向けには、「クラスII」、「クラスI」、「クラスI＆クラスII」の3つのカテゴリがあります。クラスIIの医療用電源は20Wの1製品のみです。クラスIカテゴリの出力範囲は40Wから500Wです。クラスI＆クラスIIカテゴリの出力範囲は130Wから550Wとなります。

ITE/Industrial On-Board Open Frame

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)	Find stock	RFQ
CFM04S	4W	85-305	3.3V, 5V, 12V, 15V, 24V	Altitude 5000m Class II	1.56x0.764x0.720 (PCB-mount) 1.62x0.83x0.787 (Encapsulated) 1.95.x0.71x0.689 (Wafer)	Stock	RFQ
CFM06S	6W	90-264	3.3V, 5V, 9V, 12V, 15V, 24V	Altitude 5000m Class II	1.555x0.764x0.720 (PCB-mount) 1.618x0.827x0.787 (Encapsulated) 1.950.x0.728x0.689 (Wafer)	Stock	RFQ
CFM12S	12W	90-264	5V, 9V, 12V, 15V, 24V	Altitude 5000m Approval EN60335-1 Class II	1.500x1.000x0.764 (PCB-mount) 1.600x1.1x0.772 (Encapsulated) 2.150x1.000x0.681 (Wafer)	Stock	RFQ
CFM20S	20W	90-264	5V, 12V, 15V, 24V, 48V	Altitude 5000m Meets EN60335-1 Class II	2.382x1.300x0.906 (PCB-mount) 2.482x1.402x0.933 (Encapsulated) 3.000x1.300x0.831 (Wafer)	Stock	RFQ
CFM25S	25W	90-264	5V, 12V, 15V, 24V, 36V, 48V	2 Times Peak Load Altitude 5000m Approval EN60335-1 Class II	2.000x1.100x0.980 (PCB-mount) 2.091x1.193x0.976 (Encapsulated) 2.776x1.100x0.906 (Wafer)	Stock	RFQ
CFM36S	36W	90-264	5V, 12V, 15V, 24V, 48V	Altitude 5000m Class I & Class II	3.00x1.50x1.100 (PCB-mount) 3.10x1.60x1.134 (Encapsulated) 3.00x1.50x1.000 (Wafer)	Stock	RFQ
CFM41S	40W	90-264	5V, 12V, 15V, 24V, 36V, 48V	2 Times Peak Load Altitude 5000m Meets EN60335-1 Class II	2.000x2.000x1.01 (PCB-mount) 2.14x2.14x1.035 (Encapsulated) 2.70x2.00x0.941 (Wafer)	Stock	RFQ
CFM61S	60W	90-264	5V, 12V, 15V, 24V, 36V, 48V	2 Times Peak Load Altitude 5000m Class II	2.00x2.00x1.398 (PCB-mount) 2.14x2.14x1.409 (Encapsulated) 2.70x2.00x1.343 (Wafer)	Stock	RFQ

ITE/Industrial Connector Open Frame

Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)	Find stock	RFQ

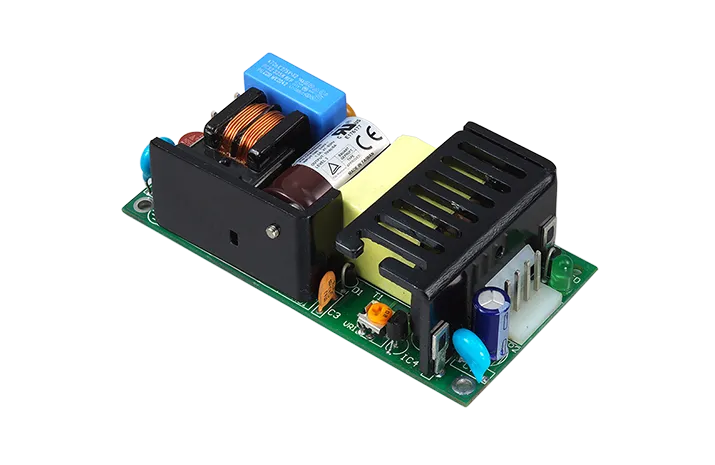

CFM40S	40W	90-264	3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V	High Peak Load	4.000x2.000x1.275 (PCB-mount) 4.000x2.000x1.200 (Wafer) 4.606x2.441x1.575 (Cover)	Stock	RFQ

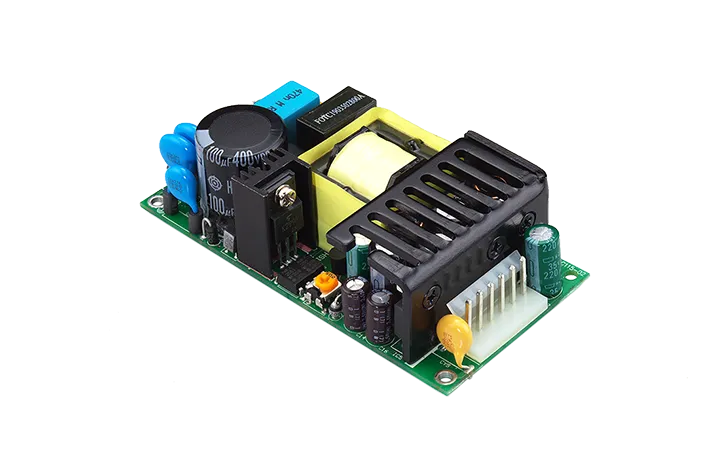

CFM40D/T	40W	90-264	3.3V/5V/-12V, 5V/12V, 5V/12V/-12V, 5V/12V/-5V, 5V/15V/-15V, 5V/24V, 5V/24V/-12V, 5V/24V/-5V, 5V/24V/12V	Dual & Triple Outputs	4.000x2.000x1.200 (Wafer) 4.606x2.441x1.575 (Cover)	Stock	RFQ
CFM50S	50W	85-264	5V, 12V, 15V, 24V, 36V, 48V	Altitude 5000m Meets EN60335-1 ClassⅠ& Class Ⅱ	3.000x2.000x1.067 (Wafer) 3.000x2.00x1.142 (PCB Mount) 3.598x2.520x1.358 (Cover)	Stock	RFQ

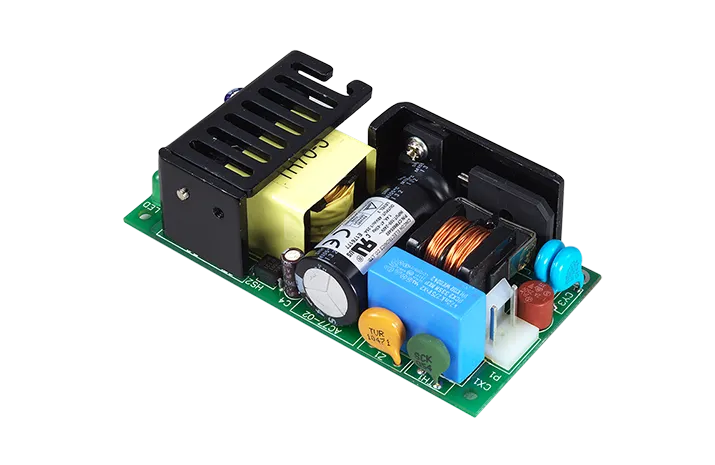

CFM60S	60W	90-264	3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V	High Peak Load	4.000x2.000x1.275 (PCB-mount) 4.000x2.000x1.200 (Wafer) 4.606x2.441x1.575 (Cover)	Stock	RFQ

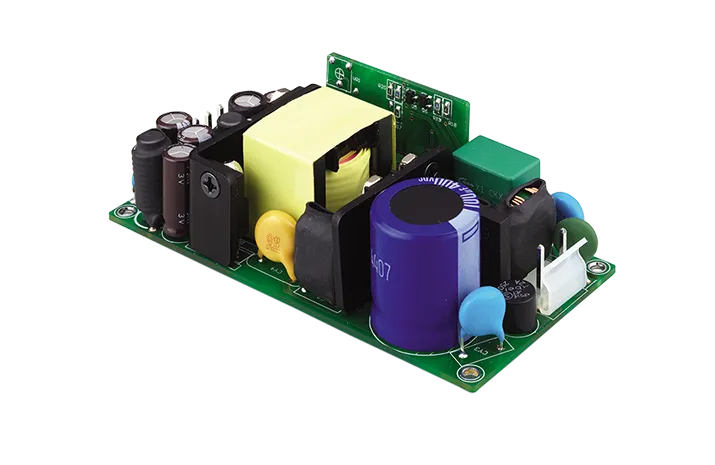

CFM60T	60W	90-264	3.3V/5V/-12V, 5V/12V/-12V, 5V/15V/-15V, 5V/24V/-12V	Triple Outputs	4.000x2.000x1.260 (Wafer)	Stock	RFQ
CFM70S	70W	85-264	5V, 12V, 15V, 24V, 36V, 48V	Altitude 5000m Meets EN60335-1 ClassⅠ& Class Ⅱ	3.000x2.000x1.067 (Wafer) 3.000x2.00x1.142 (PCB Mount) 3.598x2.520x1.358 (Cover)	Stock	RFQ

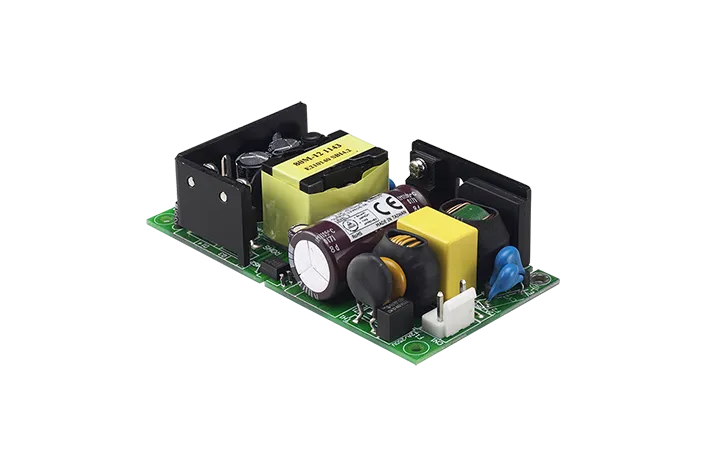

CFM80S	80W	90-264	5V, 12V, 15V, 24V, 48V	EN61000-3-2 Class A	4.000x2.000x1.142 (PCB-mount) 4.000x2.000x1.07 (Wafer)	Stock	RFQ
CFM81S	80W	90-264	12V, 15V, 24V, 48V	2 Times Peak Load Altitude 5000m Approval EN60335-1 ClassⅠ& Class Ⅱ	3.000x2.000x1.339 (Wafer) 3.200x2.441x1.575 (Cover)	Stock	RFQ

ITE/Industrial Baseplate-cooled Open Frame

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)	Find stock	RFQ
NEW	CFM600S	600W	80-264	12V, 15V, 18V, 24V, 28V, 30V, 36V, 48V	Altitude 5000m Meets EN60335-1	5.00x3.00x1.539 (Baseplate) 5.35x3.43x1.673 (Cover) 5.35x3.43x2.68 (Fan)	Stock	RFQ
	CFM130S	130W	80-264	12V, 18V, 19V, 24V, 36V, 48V	Altitude 5000m ClassⅠ& Class Ⅱ	3.000x2.000x1.20 (Open-frame) 3.598x2.000x1.299 (Baseplate) 3.598x2.520x1.358 (Cover)	Stock	RFQ
	CFM150S	150W	90-264	12V, 24V, 28V, 36V, 48V	Altitude 5000m Class I & Class II	4.00x2.00x1.283 (Open-frame) 4.60x2.00x1.362 (Baseplate)	Stock	RFQ
	LFM200S	200W	85-264	12V, 15V, 24V, 28V, 30V, 36V, 48V, 54V	Altitude 5000m Meets EN60335-1 ClassⅠ	Baseplate:3.04x2.00x1.00 Covered:3.09x2.28x1.00	Stock	RFQ
	CFM202S	200W	90-264	12V, 24V, 28V, 36V, 48V, 56V	Altitude 5000m Approval EN60335-1 ClassⅠ& Class Ⅱ	4.000x2.000x1.311 (Baseplate) 4.598x2.520x1.358 (Cover)	Stock	RFQ
	CFM260S	260W	85-264	12V, 24V, 36V, 48V	Altitude 5000m Class I	4.000x2.000x1.441 (Open-frame) 4.598x2.000x1.520 (Baseplate) 4.598x2.520x1.594 (Cover)	Stock	RFQ
	LFM300S	300W	85-264	12V, 15V, 24V, 28V, 30V, 48V, 54V	Altitude 5000m Meets EN60335-1 ClassⅠ	Baseplate:4.04x2.00x1.00 Covered:4.09x2.28x1.00	Stock	RFQ
	CFM300S	300W	90-264	12V, 24V, 36V, 48V	Altitude 5000m Meets EN60335-1 Class I	5.000x3.000x1.421 (Baseplate) 5.355x3.425x1.591 (Cover)	Stock	RFQ
	CFM400S	400W	80-264	12V, 18V, 24V, 36V, 48V, 54V	Altitude 5000m Meets IEC/EN60335-1	5.000x3.000x1.540 (Baseplate) 5.354x3.425x1.673 (Cover)	Stock	RFQ
	LFM420S	420W	85-264	12V, 15V, 24V, 28V, 30V, 36V, 48V, 54V	Altitude 5000m Meets EN60335-1 ClassⅠ	Baseplate:5.00x3.00x1.00 Covered:5.09x3.29x1.00	Stock	RFQ
	CFM500S	500W	80-264	12V, 18V, 24V, 28V, 30V, 36V, 48V	Altitude 5000m Meets EN60335-1	5.000x3.000x1.540 (Baseplate) 5.354x3.425x1.673 (Cover)	Stock	RFQ

Medical Class II On-Board Open Frame

		Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)	Datasheet	Find stock	RFQ
		CFM21	20W	90-264	3.3V, 5V, 9V, 12V, 15V, 24V	2MOOP	2.38x1.60x0.80 (PCB-mount) 3.00x1.60x0.77 (Wafer) 2.53x1.74x0.80 (Encapsulated) 3.00x1.60x0.77 (Screw Terminal)		Stock	RFQ

Medical Class I Connector Open Frame

		Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)	Datasheet	Find stock	RFQ
		CFM40M	40W	90-264	3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V	2MOPP	3.000x2.000x0.948 (PCB-mount) 3.000x2.000x0.909 (Wafer) 3.200x2.441x1.260 (Cover)		Stock	RFQ
		CFM60M	60W	90-264	5V, 12V, 15V, 24V, 48V	2MOPP	4.000x2.000x1.100 (Wafer) 4.606x2.441x1.575 (Cover)		Stock	RFQ

Medical Baseplate-cooled Open Frame

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)	Find stock	RFQ
	CFM130M	130W	80-264	12V, 18V, 19V, 24V, 36V, 48V	2MOPP Altitude 5000m Class I & Class II	3.000x2.000x1.20 (Open-frame) 3.598x2.000x1.299 (Baseplate) 3.598x2.520x1.358 (Cover)	Stock	RFQ
NEW	LFM200M	200W	85-264	12V, 15V, 24V, 28V, 30V, 36V, 48V, 54V	2 MOPP Altitude 5000m Class I & Class II	Baseplate:3.04x2.00x1.00 Covered:3.09x2.28x1.00	Stock	RFQ
	LFM300M	300W	85-264	12V, 15V, 24V, 28V, 30V, 48V, 54V	2 MOPP Altitude 5000m Class I & Class II	Baseplate:4.04x2.00x1.00 Covered:4.09x2.28x1.00	Stock	RFQ
	CFM300M	300W	90-264	12V, 24V, 36V, 48V	2MOPP Class I	5.000x3.000x1.421 (Baseplate) 5.355x3.425x1.591 (Cover)	Stock	RFQ
	LFM420M	420W	85-264	12V, 15V, 24V, 28V, 30V, 36V, 48V, 54V	2 MOPP Altitude 5000m Class I	Baseplate:5.00x3.00x1.00 Covered:5.09x3.29x1.00	Stock	RFQ
	CFM500M	500W	80-264	12V, 18V, 24V, 36V, 48V	2MOPP Altitude 5000m Meets EN60335-1 Class I & II	5.000x3.000x1.540 (Baseplate) 5.354x3.425x1.673 (Cover)	Stock	RFQ
